Rotating loaded dipole 30-40-80m

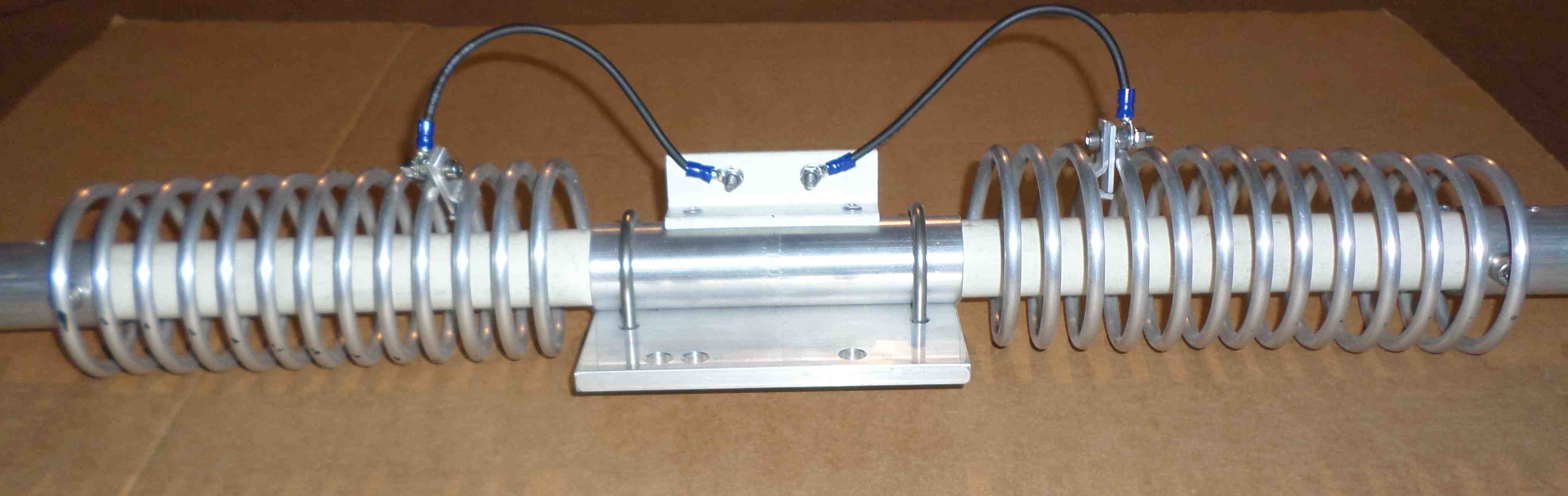

Rotary dipole small-size high-performance through the use of no losses loading coils and capacitive hat at the tip.

The on air tests, performed for many months and in all possible conditions including rain, wind storm and snow,  have always given average results above to a classic inverted V full size dipole.

Robust construction with stainless steel bolts, thick aluminum coil and fiberglass insulators, allow you to use it with powers far beyond the legal limits.
The input system allows extremely precise adjustment.

All models specifications:
- Gain = da 0 a + 6 dBd
- Impedence = 50 ohm
- Front-side = about 15 dB
- ROS = entro 1:1,5  (vedi grafici)
- Accept 48mm (serie) or 60mm (optional) mast pipe
- Material = AL6060T6, stainless steel hardware.

- Balun 1:1  5KW = 65.70 + vat = 80.17Euro
- Balun 1:1 1,5KW = 40.90 + vat = 49.89Euro

Vat free for non EU Cityzen and EU company with business VAT number.

- Shipping = ASK

Rotating dipole 30m PST-RD30SC
      Rotating radius = 3.2m  (tot = 6.4m)                                   Weight = 5Kg
  Wind area: 0.2mq                                         Cost: 199.00 + vat = 242.78Euro

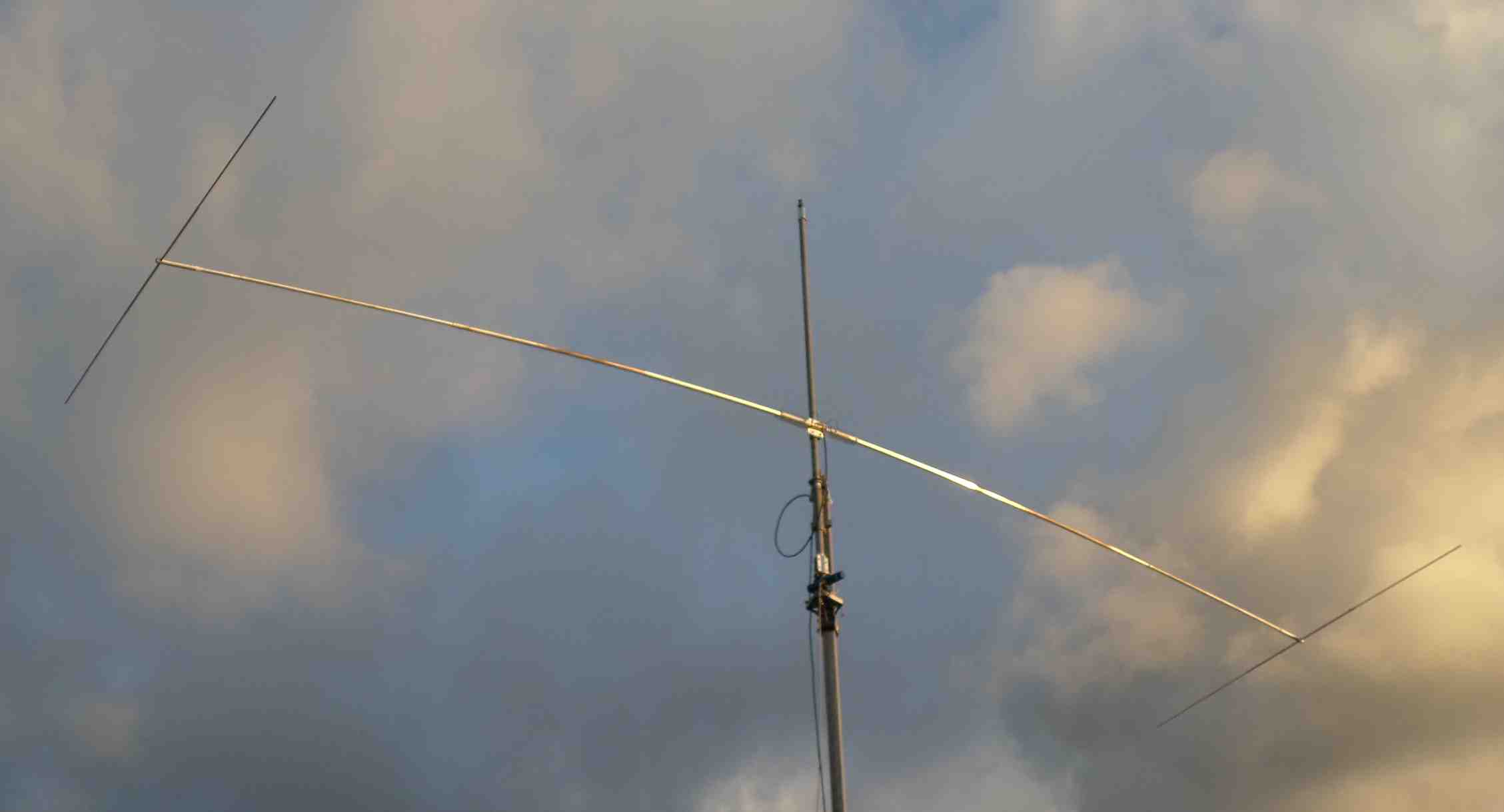

Rotating dipole  40m PST-RD40SC

   Rotating radius = 5m  (tot = 10m)                                     Weight = 7Kg
Wind area: 0.3mq                                     Cost: 245.08 + vat = 299.99Euro

We reserve the right to make changes without prior information to anyone.
The content of this website is the exclusive property Pro.Sis.Tel.
Reproduction prohibited.
Last Updated: January 30, 2015

How to order:

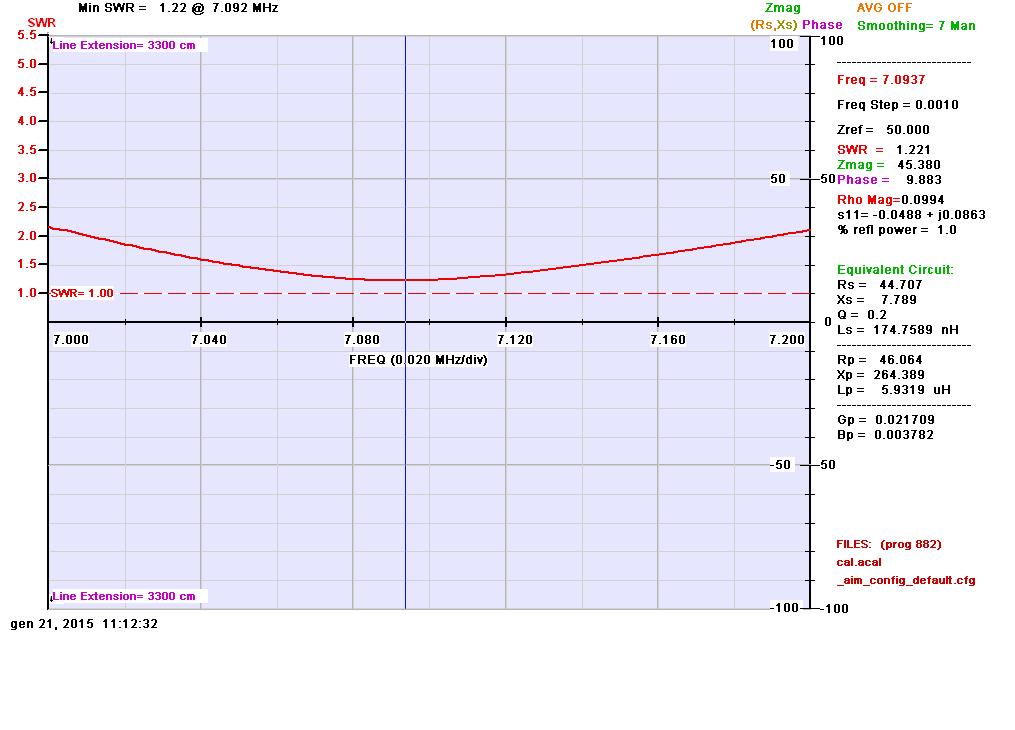

40m SWR

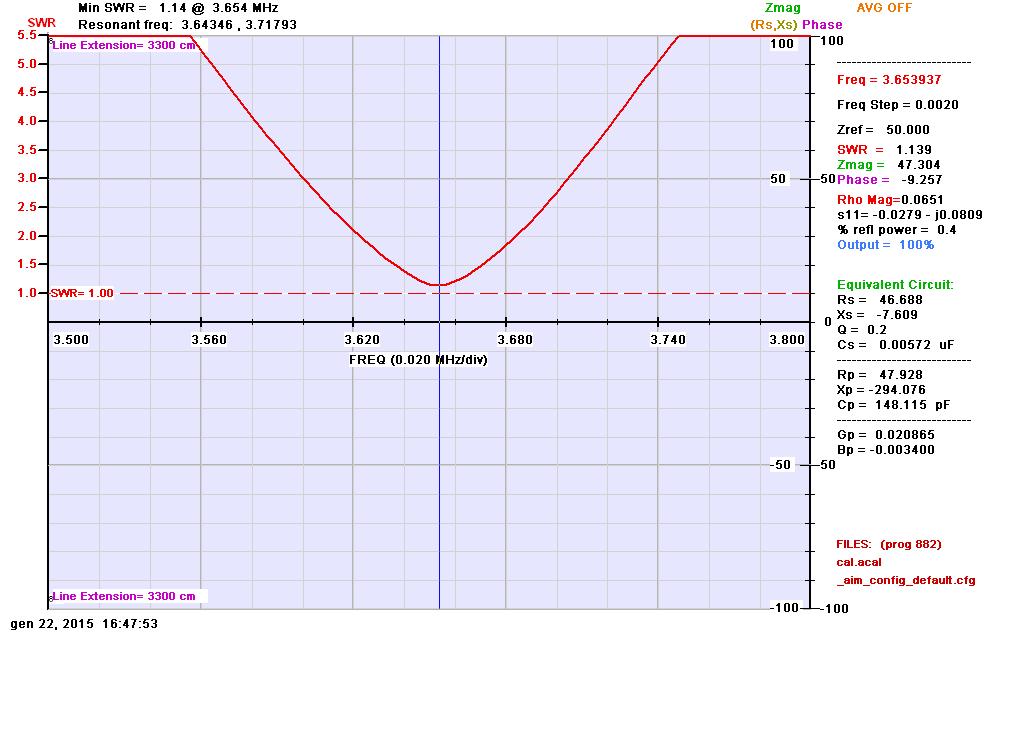

80m  SWR
An easy tuning way allow to set  dipole on the preferite 80m band slot


80m rotating dipole PST-RD80SC

   Rotating radius = 8m  (tot = 16m)                    Weight = 15Kg
  Wind area: 0.8mq                                          cost: 649.00 + vat = 791.78Euro
