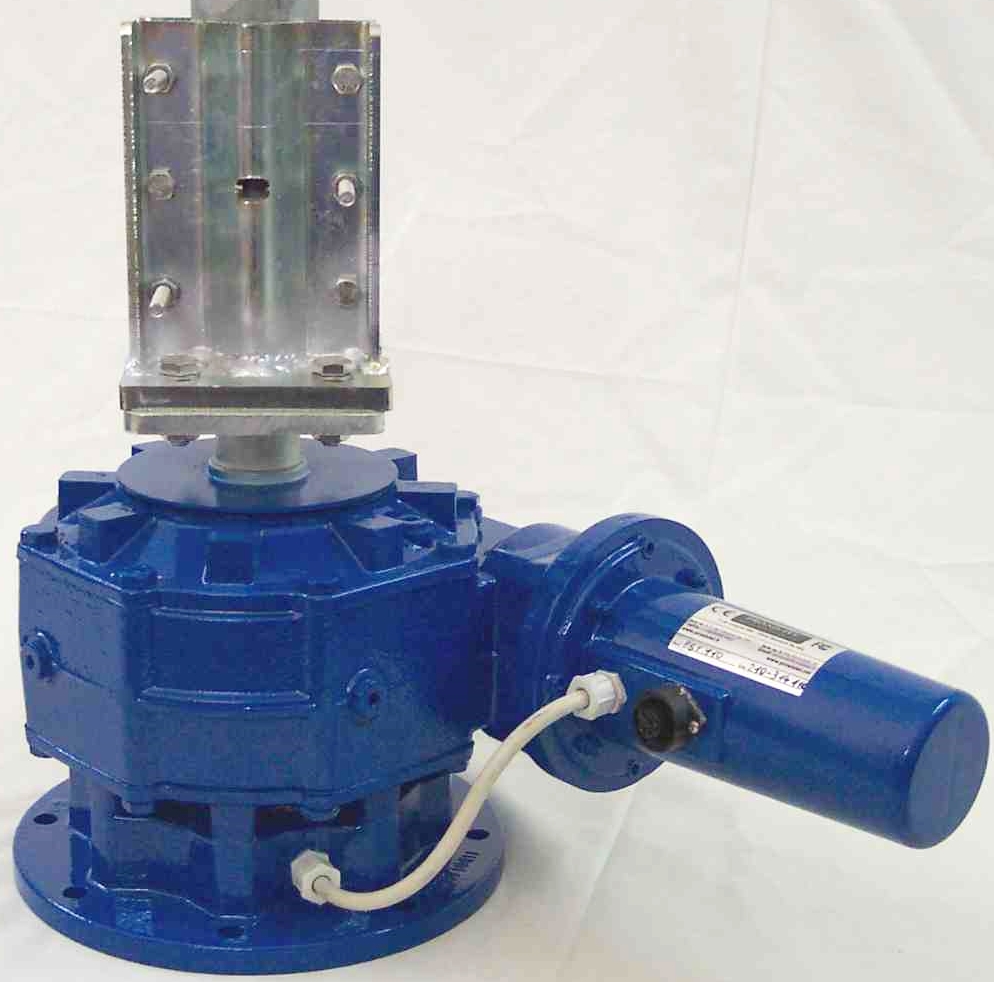

Super Heavy Duty antenna Rotator, handle up 10m2 (80sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque
Soft start e soft stop with programmable ramp speed.
Two years warranty
Specifications:
- Max wind load area 10 m�
- Braking torque 16.500Kgcm = 1.617Nm
- Rotating torque 7.142Kgcm = 700Nm
- Max vertical load 1.200Kg
- Motor voltage 24 VDC
- Rotating range 360�
- Rotation speed ~120 seconds for 360�
- Reading accuracy 1� no backlash
- Antenna mast OD 40-80mm
- Operational temperature range (�C): rotor unit -40� � +60�
control box -20� � +60�
- Storage temperature (�C): rotor unit -40� � +70�
control box -25� � +60�
- Control box power input 230VAC (115VAC) , 50-60Hz, 100VA
- Direction reading Digital Hall Encoders
- Limits Electronic, adjustable by software
- Rotator cable 7 wires (2 x 1mm� + 5 x 0,5mm�) double shield cable
- Weight (rotator only) ~ 40kg
Specifications may be subject to change without notice or obligation
Copyright @ pro.sis.tel. 2021

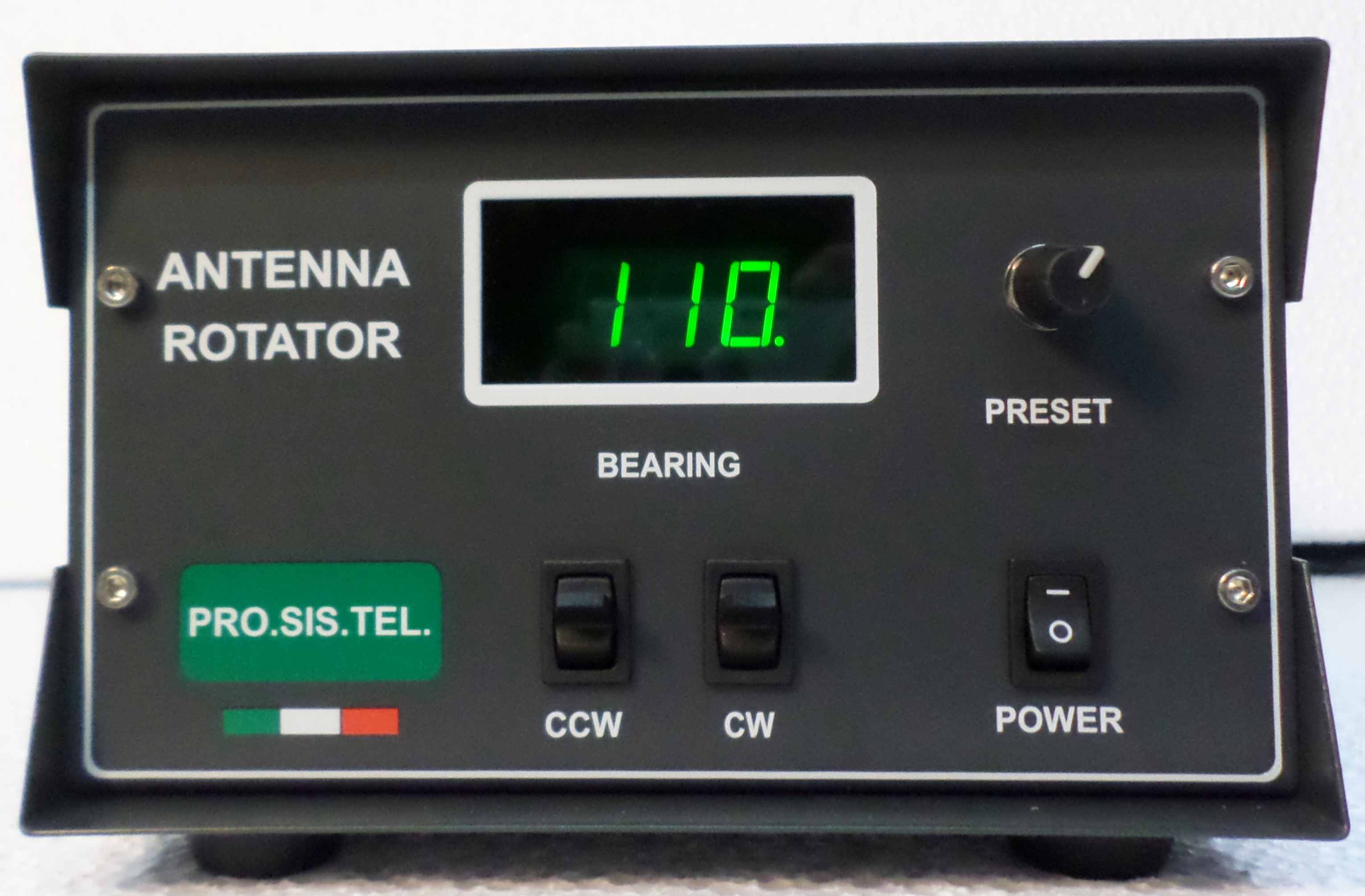

USB Com port for PC
Soft start - soft stop with programmable ramp
Programmable speed + Preset
Max rotation range 500� (70+360+70)
Programmable end rotation limits
Selectable south stop or north stop
All settings are programmable by PC
Some detailes:
- High strenght iron cast gear box
- Rugged and proven design.

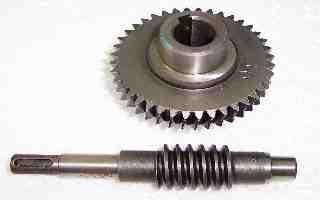

- Nickel chromium-molybdenum steel and bronze alloy gears
running on balls bearings
- No maitenance, life lubrificated.
- Strength steel galvanized mast clamp.
- Stainless steel bolts.
- IP55
Some inside views shots with technical details.
With which competitors model can be compared?
This rotor has no competitors
How mutch does it cost?
Shipping
Country outside Italy please ask.
What will you get in the package?
Rotor with mast clamp, stailess steel bolts, control box with power cord, rotor
cable's connectors, printed user manual + CD with rotor tool software +
extra instructions for USB port users.
