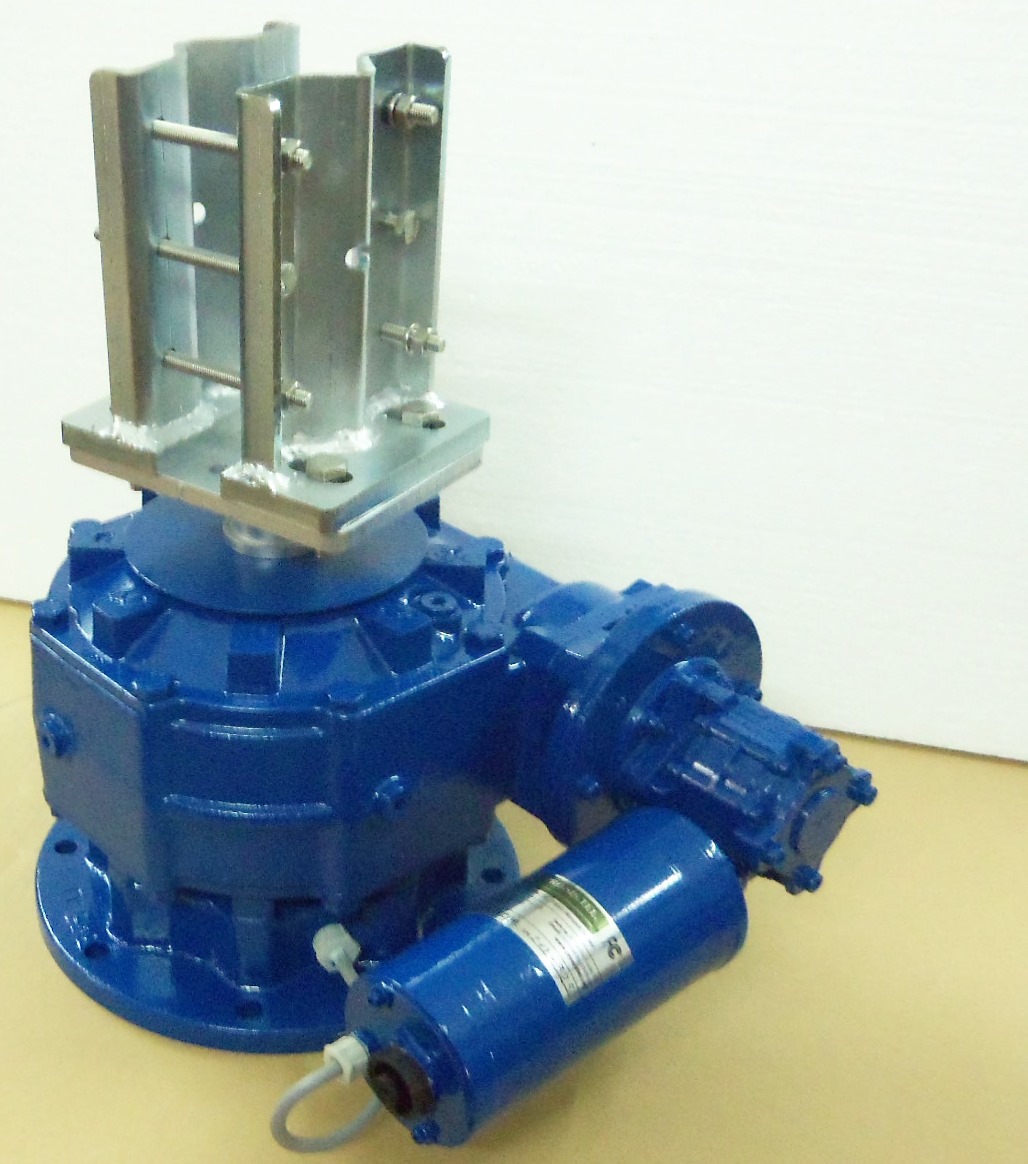

PST-110D-PRO-HP
Super Heavy Duty antenna Rotator, handle up 10m2 (80sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque
Soft start  e soft stop  with programmable ramp speed.
Two years warranty

Specifications:
-    Max wind load area          10 m�
-    Braking torque                  16.500Kgcm  =  1.617Nm
-    Rotating torque                7.959Kgcm =  780Nm
-    Max vertical load             1.200Kg
-    Motor voltage                   42 VDC
-    Rotating range                  360�
-    Rotation speed                ~120 seconds for 360�
-    Reading accuracy            1� no backlash
-    Antenna mast OD             40-80mm  (larger clamps on request)
-    Operational temperature range (�C): rotor unit          -40� � +60�
                                                                         control box      -20� � +60�
-    Storage temperature (�C):                    rotor unit          -40� � +70�
                                                                         control box      -25� � +60�
-    Control box power input            230VAC (115VAC) , 50-60Hz, 100VA
-    Direction reading                          Digital  Hall Encoders
-    Limits                                               Electronic, adjustable by software
-    Rotator cable                                 7 wires (2 x 1mm� + 5 x 0,5mm�) double shield cable
-    Weight  (rotator only)                   ~ 45kg















Specifications may be subject to change without notice or obligation

Copyright @ pro.sis.tel. 2021

USB Com port for PC
Soft start - soft stop with programmable ramp
Programmable speed  + Preset
Max rotation range 500� (70+360+70)
Programmable end rotation limits
Selectable south stop or north stop
All settings are programmable by PC
Some detailes:
- High strenght iron cast gear box
- Rugged and proven design.

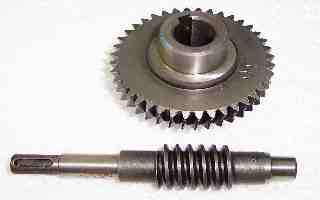

- Nickel chromium-molybdenum steel and bronze alloy gears
   running on balls bearings
- No maitenance, life lubrificated.
- Strength steel galvanized mast clamp.
- Stainless steel bolts.
- IP55

Some inside views shots with technical details.





With which competitors model can be compared?
This rotor has no competitors

How mutch does it cost?
PST-110D-PRO-HP - order on line)

Shipping
Country outside Italy please ask.

What will you get in the package?
Rotor with mast clamp, stailess steel bolts, control box with power cord, rotor
cable's connectors, printed user manual + CD with rotor tool  software +
extra instructions  for USB port users.
