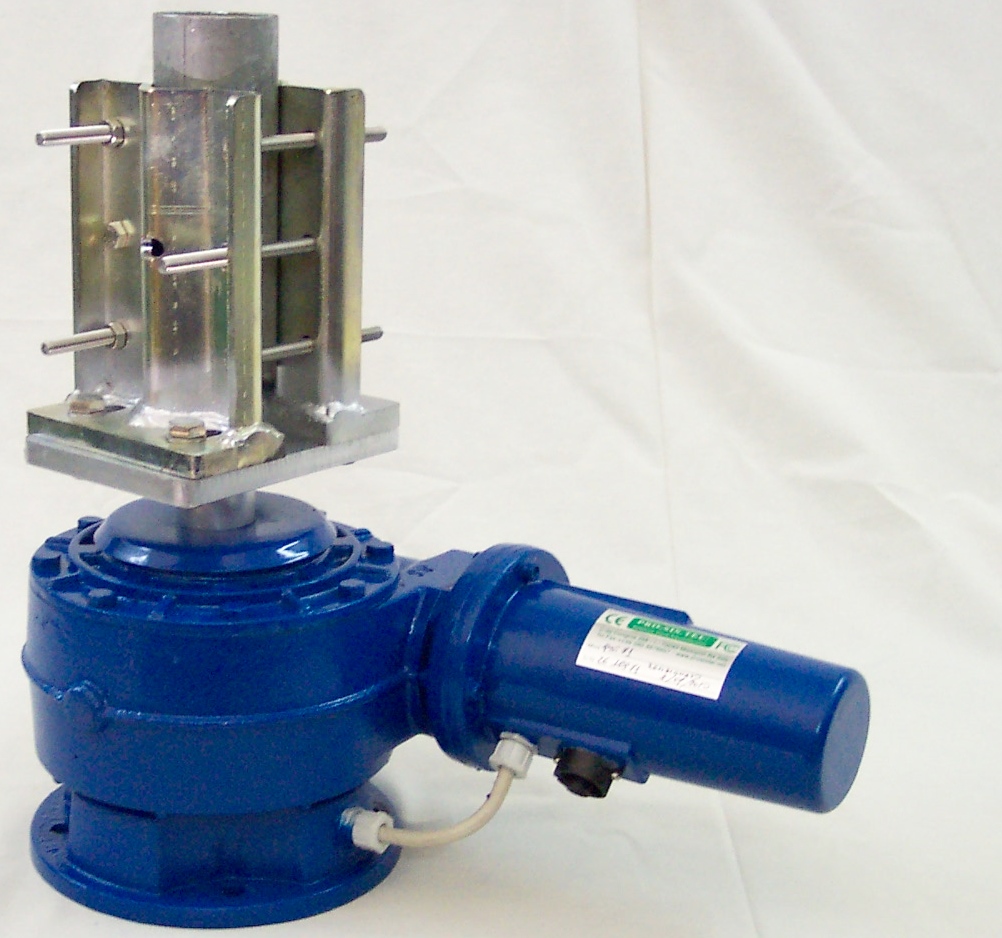

Extra Heavy duty antenna Rotator, handle up 8.8m2 (80sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque
Soft start e soft stop with programmable ramp speed.
Two years warranty
- Max wind load area
- Braking torque
11.081Kgcm = 1086Nm
- Rotating torque
6.122Kgcm = 600Nm
- Max vertical load
- Motor voltage
- Rotating range
- Rotation speed
~100 seconds for 360°
- Reading accuracy ~
1% no backlash
- Antenna mast OD
- Operational temperature range (°C):
rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C):
rotor unit -40° ÷ +70°
control box -25° ÷ +60°
- Control box power input
230VAC (115VAC) , 50-60Hz, 50VA
- Direction reading
Electronic, adjustable by software
- Rotator cable
5 wires (2 x 1mm² + 3 x 0,5mm²)
- Weight (rotator only)
Specifications may be subject to change without notice or obligation
Copyright @ pro.sis.tel. 2021

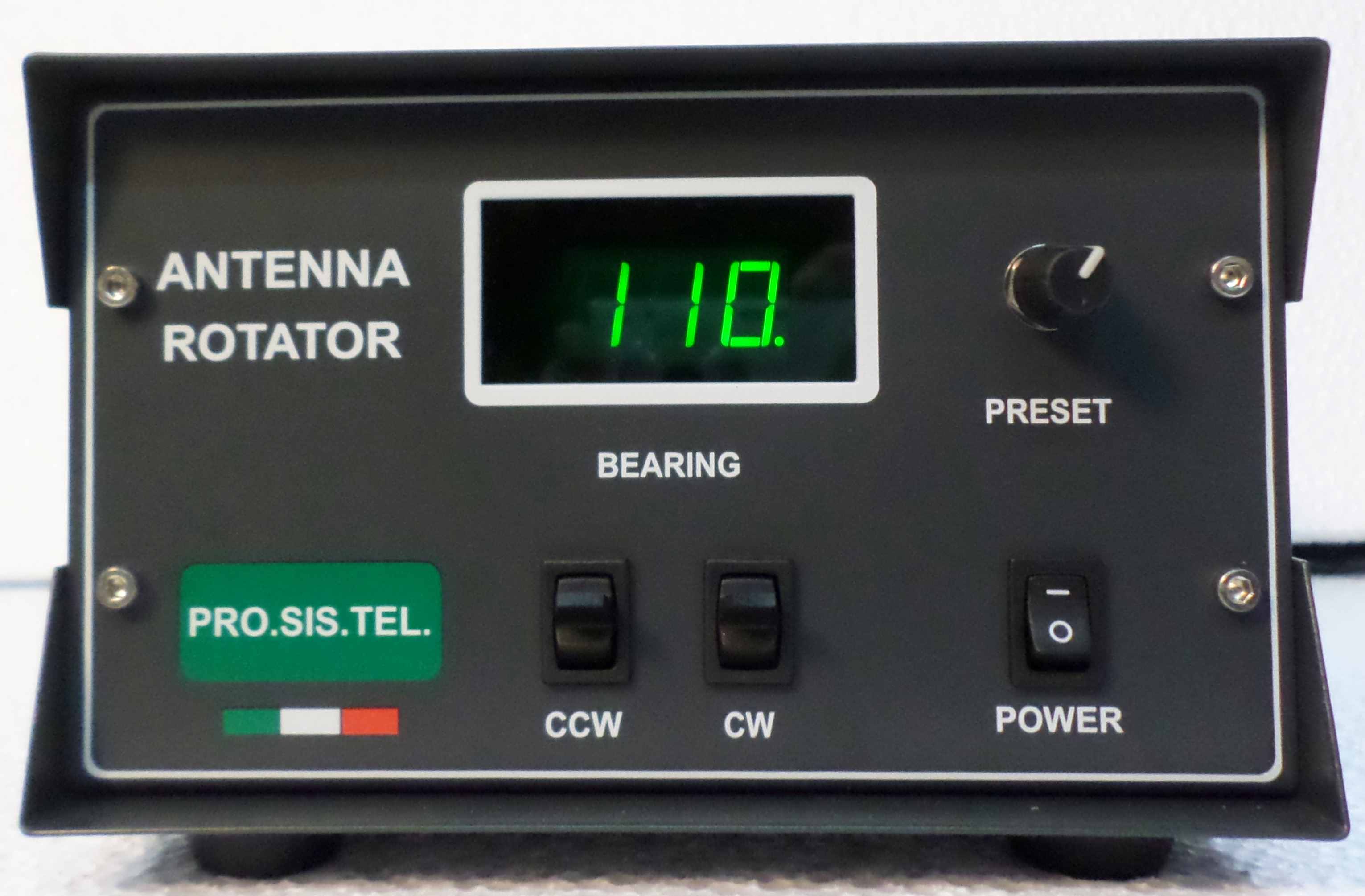

USB Com port for PC
Soft start - soft stop with programmable ramp
Programmable speed + Preset
Max rotation range 500° (70+360+70)
Programmable end rotation limits
Selectable south stop or north stop
All settings are programmable by PC
- High strenght cast alluminium gear box
- Rugged and proven design.

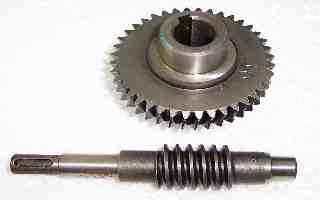

- Nickel chromium-molybdenum steel and bronze alloy gears
running on balls bearings
- No maitenance, life lubrificated.
- Strength steel galvanized mast clamp.
- Stainless steel bolts.

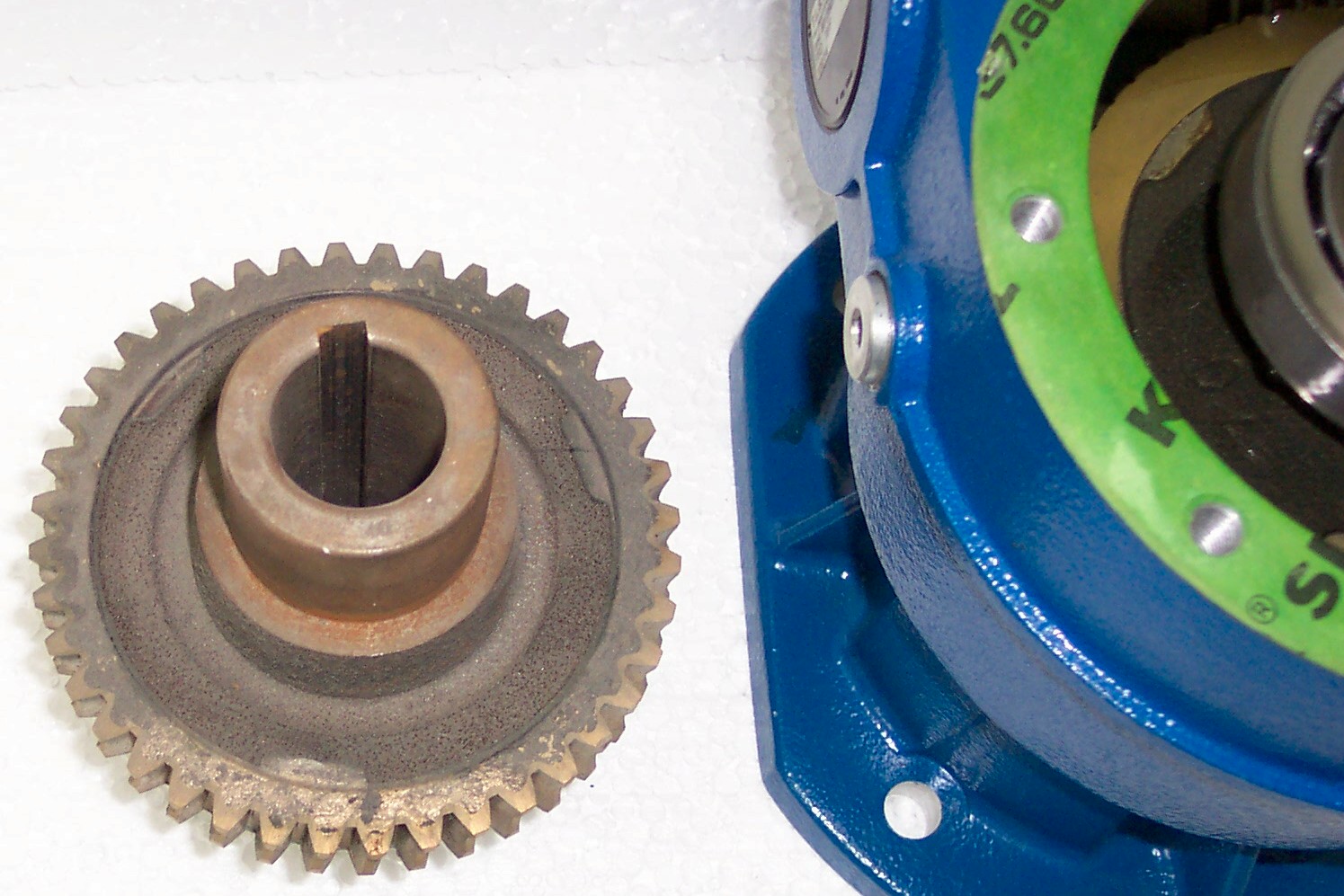

Some inside views shots with technical details.
With which competitors model can be compared?
This rotor has no competitors
How mutch does it cost?
PST-71D = 2267.98Euro (EU price include VAT - order on line)
PST-71D = 1859.00Euro(Extra EU, VAT free - order via email)
Country outside Italy please ask.
What will you get in the package?
Rotor with mast clamp, stailess steel bolts, control box with power cord, rotor
cable's connectors, printed user manual + CD with rotor tool software +
extra instructions for USB port users.
